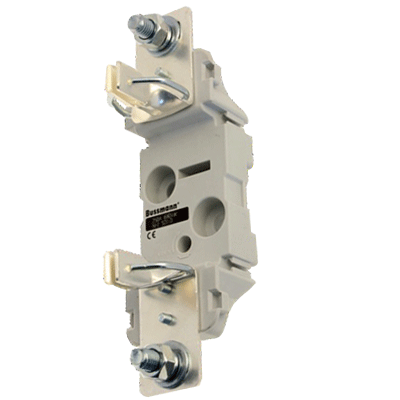

Fuse base 1p 690V 250A NH1 fuse IP00

CBSD1-D

Thermoplastic fuse base for NH solid blade fuses. Terminal covers and solid links are available as accessories. Vibration tested to IEC 60068-2-6 for marine use.

Pack size: 1/package
In stock (2 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage
690V
Rated current
250A
No.of poles
1
Fuse size
1
Short circuit current
120kA
Max power loss/pole
32W
Terminal
M10 screw
Ingress protection, IEC60529
IP00, IP20 with accessories
Installation
35mm DIN rail mount/screw mount
Weight, each
0,32kg
Manufacturer's part number
SD1-D

Phase barriers+ganging links for NH2/3 fuseholders 2 pcs
Phase barriers+ganging links for NH2/3 fuseholders 2 pcs
CBSD12-PB
Pack: 1 pcs
Info
Shroud kit for NH1/2 fuseholders
Shroud kit for NH1/2 fuseholders
CBSD12-SK
Pack: 1 pcs
Info
Solid link NH1 690V 250A
Solid link NH1 690V 250A
CBSDL-1
Pack: 3 pcs
Info

Fuse bases for Solid blade fuses size 00-3
