• Voltage Presence? Check!
• Check! Voltage Absence? Check!

Verify voltage presence and test for absence of voltage in one device without open the enclosure door.

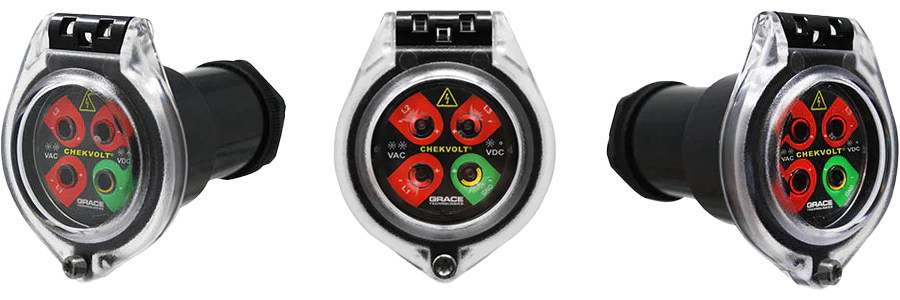

Grace Technologies introduce ChekVolt, voltage indication and test point in one device. The voltage indicator offers a visual indication if voltage is present or not and illuminates when hazardous voltage or stored energy is present in each phase. The voltage indicator is supplied from the load, there are no batteries that need to be replaced. The test point is protected by a high impedance circuit (120kΩ) and is used together with a standard Cat III/IV multimeter.

ChekVolt can be used for voltages up to 1000VAC/DC and is installed in a 30,5mm hole. Ingress protection IP66 with cap closed, included.

Read more about ChekVolt >
