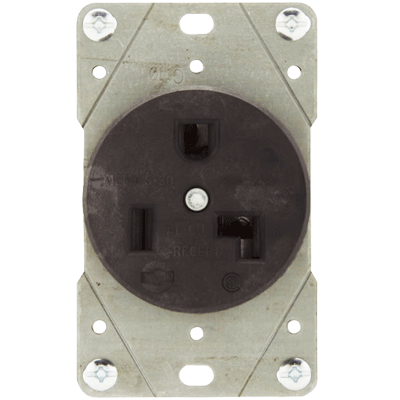

Receptacle 125V 30A 1p+N+E 5-30R black

IU530RSG

Power straight blade receptacles according to North American standard. Rugged design, Industrial Grade.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 28 days

Description
Single receptacle
Rated voltage
125V
Rated current
30A
Poles
1p+N+E
NEMA configuration
5-30R
Colour
Black
Grade
Industrial grade
Tamper resistant
No
Weather resistant
No
Terminals
Pressure plate AWG10-4
UL approval
cUL listed to UL498, file E15058
CSA approval
cUL Listed to CSA C22.2, no. 42, file E15058
Weight, each
0,2kg
Manufacturer's part number
5716N
