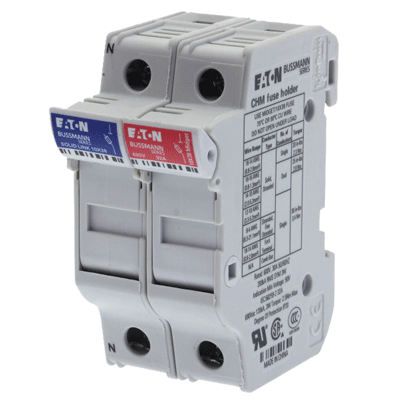

Fuse disconnector 1P+N 690V 32A D10*38mm

CBCHM1DNU

Off-load fuse disconnector with neutral pole for 10*38mm cylindrical fuses. Open fuse lamp indicator. Compact design, installation on 35mm DIN rail. UL and CSA approved.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage
690V IEC/600V UL
Rated current
32A IEC/30A UL
No.of poles
1+neutral
Fuse size
D10*38mm
Short circuit current
120kA IEC/200kA UL
Max power loss/pole
3W
Open fuse indicator
-
Terminal
Box terminal 1-25mm²/AWG18-4
Ingress protection, IEC60529
IP20
Installation
35mm DIN rail mount
UL/CSA approval
UL recognized IZLT2, File E14853/CSA Class 6225-30, File 47235
Weight, each
0,106kg
Manufacturer's part number
CHM1DNU
