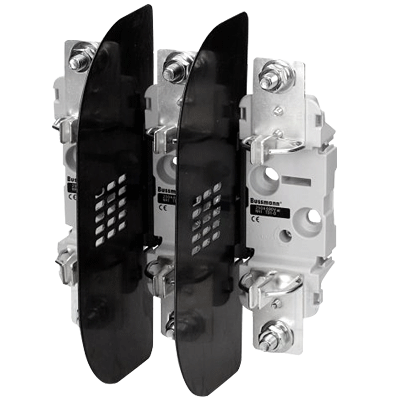

Fuse base 3p 690V 250A NH1 fuse IP00

CBTD1-D

Thermoplastic fuse base for NH solid blade fuses. Terminal covers and solid links are available as accessories. Vibration tested to IEC 60068-2-6 for marine use.

Pack size: 1/package

In stock (0 pcs)

Estimated delivery time, if not in stock: 21 days

Rated voltage

690V

Rated current

250A

No.of poles

Fuse size

Short circuit current

120kA

Max power loss/pole

32W

Terminal

M10 screw

Ingress protection, IEC60529

IP00, IP20 with accessories

Installation

35mm DIN rail mount/screw mount

Weight, each

1,19kg

Manufacturer's part number

TD1-D

Catalogue, Industrial fuses IEC, Swedish
Catalogue, Industrial fuses IEC, English
Data sheet, Fuse bases for NH solid blade fuses size 00-4, 690V

Fuse base 3p 690V 250A NH1 fuse IP00
