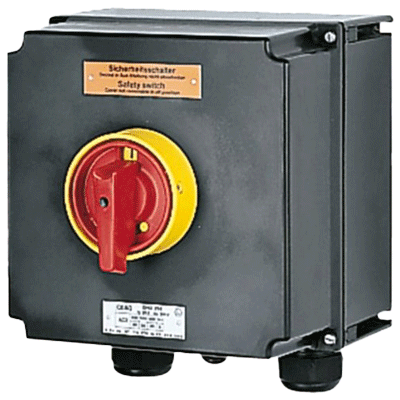

Safety switch 690V 80A 3-pol+NO-NC aux.contact 2*M50/M25 IP66 Ex

IXGHG2640020R0002

ATEX and IECEx certified safety switch used to prevent unintended or unauthorized start of electrical equipment. The handle can be padlocked with your own padlock in off position. Meets EN60204-1 as emergency stop and IEC62262-1 Class 1 for maintenance. Enclosure made of impact resistant polyester.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage, Un
690V
Rated current, In
80A
No. of poles, auxiliary contacts
3, NO auxiliary contact
Rated making/braking capacity, AC3, IEC60947-3, Ie
Ue 230-500V: Ie 80A, Ue 690V: Ie 63A
Max back-up fuse
230-500V: 160A gG, 690V 125A gG
Operator handle
Red-yellow operator, padlocable in off position for up to 3 padlocks
Enclosure
Glass-fibre reinforced polyester
Marking acc.to 214/34/EU
II 2 G Ex db e [ia/ib] IIB/IIC T5/T6 GB/II D Ex tb IIIC T80°C Db
EC type examination certificate
BVS 15 ATEX E 125 X
Marking acc.to IECEx
Ex db e [ia/ib] IIB/IIC T5/T6 Gb, Ex tb III C T180°C Db
IECEx certificate
IECEx BVS 15.0103X
Max permissible ambinet temperature
-20 - +40°C
Cable entry
4xM50, M25 cable gland
Terminals
25mm², auxiliary contact 4mm²
Weight,each
6,5kg
Manufacturer's part number
GHG2640020R0002

Safety switches, ATEX

Safety switches for installation in hazardous locations.

Safety switches 10-125A with ATEX and IECEx certification. The handle can be padlocked with your own padlock in off position used to prevent unintended or unauthorized start of electrical equipment. The switches have full AC-3 rating according to IEC60947-4-1. Designed for use in harsh environments, ingress protection IP66, and comply with Class 1 according to IEC62262-1. The switches are available as 3-pole, 4-pole or 6 pole.
