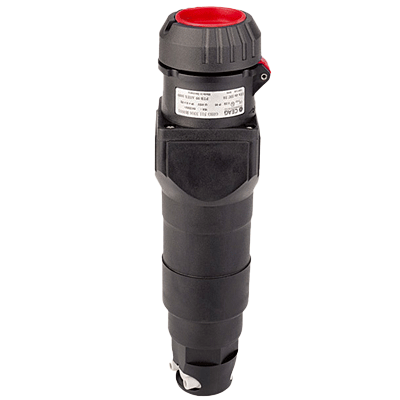

Coupler 380-415V 16A 3p+E IP66 black-red Ex

IXGHG5113406R0001

ATEX and IECEx certified coupler with interlocking switch for Zone 1 and 21. The coupler is disconnected from the supply with no plug inserted. Insert the plug into the coupler and twist to connect. High ingress protection IP66. Plug and coupler must be from the same manufacturer.

Pack size: 1/package

In stock (0 pcs)

Estimated delivery time, if not in stock: 21 days

Description

Coupler

Rated voltage

380-415VAC, 50/60Hz

Rated current

16A

Poles

3p+E

Earth pin location

Rated making/braking capacity, AC3, IEC60947-3, Ie

16A without thermal protection

Colour

Black-red

Material

Polyamide

Marking acc.to 214/34/EU

II 2G/Ex db eb [ia] IIC/IIB+H2 T6, II 2 D Ex IIIC/IIIB T80 Db

EC type examination certificate

BVS 17 ATEX E 053 X

IECEx certificate

IECEx BVS 17.0045X

Max permissible ambinet temperature

-20 - +55°C

Cable diameter

8-21mm

Terminals

1,5-4mm²

Weight,each

1,7kg

Manufacturer's part number

GHG5113406R0001

Data sheet, Ex plugs and sockets 16A for zone 1 and 21, english
