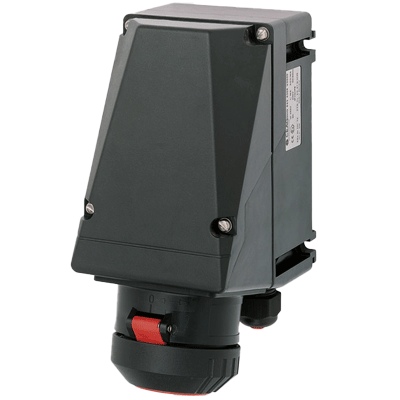

Enclosed socket 380-415V 16A 3p+E IP66 black Ex

IXGHG5114406R0001

ATEX and IECEx certified enclosed socket with interlocking switch for Zone 1 and 21. The socket is disconnected from the supply with no plug inserted. Insert the plug into the socket and twist to connect. High ingress protection IP66. Plug and socket must be from the same manufacturer.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 21 days

Description
Enclosed socket
Rated voltage
380-415VAC, 50/60Hz
Rated current
16A
Poles
3p+E
Earth pin location
6h
Rated making/braking capacity, AC3, IEC60947-3, Ie
16A without thermal protection
Colour
Black
Material
Glass-fibre reinforeced polyester
Marking acc.to 214/34/EU
II 2G/Ex db eb [ia] IIC/IIB+H2 T6, II 2 D Ex IIIC/IIIB T80 Db
EC type examination certificate
BVS 17 ATEX E 053 X
IECEx certificate
IECEX BVS 17.0045X
Max permissible ambinet temperature
-20 - +55°C
Cable entry
M25 cable gland, M25 screw plug
Terminals
2x1,5-4mm²
Weight,each
1,2kg
Manufacturer's part number
GHG5114406R0001
