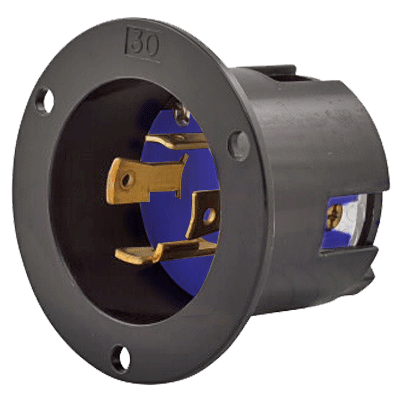

Inlet locking 250V 30A 3p+E L15-30P black/blue

IUL1530I

Locking inlet according to North American standard. The connector is inserted into the inlet and locked into place with a twisting motion to prevent the plug from accidentally disconnecting from the inlet.

Pack size: 1/package
In stock (0 pcs)
Estimated delivery time, if not in stock: 28 days

Description
Inlet, locking device
Rated voltage
250V
Rated current
30A
Poles
3p+E
NEMA configuration
L15-30P
Colour
Black/blue
Grade
Industrial grade
Terminals
AWG14-8
UL approval
cUL listed to UL498, file E3663
CSA approval
-
Weight, each
0,11kg
Manufacturer's part number
AHCL1530FI
