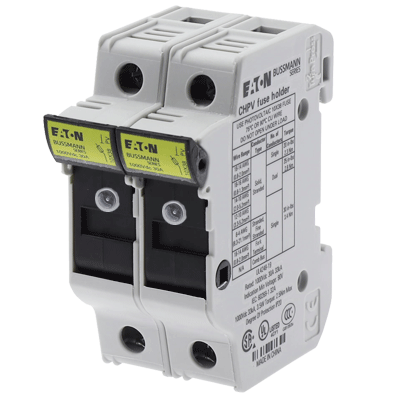

Fuse disconnector 2P 1000VDC 32A D10*38mm ind

CBCHPV2IU

Off-load fuse disconnector for 10*38mm cylindrical fuses. Open fuse lamp indicator. Compact design, installation on 35mm DIN rail. UL and CSA approved.

Pack size: 1/package
In stock (3 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage
1000VDC
Rated current
32A
No.of poles
2
Fuse size
D10*38mm
Short circuit current
33kA
Max power loss/pole
3,5W
Open fuse indicator
Neon lamp, minimum indication voltage 90V
Terminal
Box terminal 1-25mm²
Ingress protection, IEC60529
IP20
Installation
35mm DIN rail mount
UL/CSA approval
UL Listed IZMR, File E348242/CSA Class 6225-30, File 47235
Weight, each
0,106kg
Manufacturer's part number
CHPV2IU
