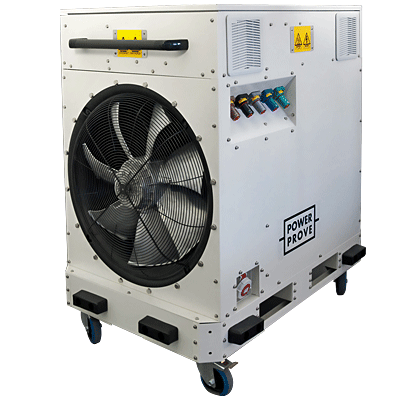

Portable load bank 230/400VAC 66,7/200kW Digiload

REAC200-400

Portable load bank for generator testing. It is a well-known fact that diesel engines that run on low loads will be more unreliable which may inflect the performance when it is really required. Regular maintenance including load testing is the best way to ensure high reliability.

Pack size: 1/package

In stock (0 pcs)

Estimated delivery time, if not in stock: 56 days

Rated voltage

230/400VAC 1/3-fas 50/60Hz

Rated power

66,7/200kW 1/3 phase

Control voltage

400VAC, 3 phase from external source (recommended) or from test load

Cooling

Air, forced cooling, 3,7kW fan

Load step resolution 3-phase

5kW/step, total 200kW

Load step resolution 1-phase

1,67kW/steg, totalt 66,7kW

Control

Digiload touchscr., rotary switch for control voltage select.,emergency sw.

Metering

Indication on Digiload touchscreen

Data logging

Included

Connection test load

5 colour coded Powersafe connectors 3p+N-E

Connection, control voltage

IEC 60309 inlet 3p+E 400V, 16A

Connection, data logging

USB type A, 2*RJ45 Modbus TCP/IP

Ingress protection, IEC60529

IP23, control compartment IP54

Dimensions height*widht*depth

1353*1180*800mm

Weight, each

240kg

Manufacturer's part number

AC200

Portable load banks, AC

Portable load banks for generator and emergency power testing.

6-500kW
Single phase and three phase testing
Portable units up to 100kW
200-500kW can easily be transported, mounted on heavy duty castors, integrated fork lift points provided.
Versions with Digiload control system available
