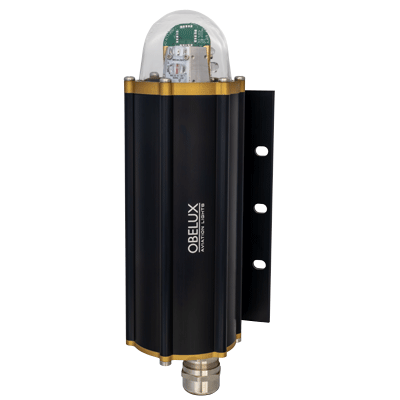

Low intensity obstruction light LED red+IR 10-60VDC 10cd A IP65

ALPOBLI-DC-10-IR-A

Low intensity obstruction lights are used to warn air traffic for high structures like tall buildings, chimneys, masts, cranes etc. LED+IR as light source to ensure visibility for pilots using night vision device. Long life >175000 hours. Meets Swedish Transport Agency’s regulations TSFS 2020:88.

Pack size: 1/package
In stock (1 pcs)
Estimated delivery time, if not in stock: 14 days

E-number Sweden
7769092
Supply voltage
10-60VDC
Colour, light source
Red LED+IR, LED life expectancy >100000 hours
Light intensity LED
10cd, ICAO type A
Light intensity IR
850 nm, >3 mWsr >+5° - <+90°, >25 mW/sr >0° - <+5°
Light angle, red light
360° horizontal, >10° vertical
Power consumption
0,85W, heater 7W
Duty
Selectable, 24 hour or dusk-to-dawn
Burning
Steady burning
Alarm contact
Included, change-over contact
GPS syncronisation/Modbus communication
Not included contact CHS Controls for more information
Terminals
Terminals, 1,5-4mm²
Ingress protection, IEC60529
IP65
Ambient temperature
-40 - +55°C
Weight, each
1,3kg
Manufacturer's part number
LI-DC-10-IR-A

Mounting set for low intensity obstruction lights, pipe mount 33-80mm
Mounting set for low intensity obstruction lights, pipe mount 33-80mm
ALPOBMS-HV80
Pack: 1 pcs
Info
Mounting set for low intensity obstruction lights,roof/wall 90° angle
Mounting set for low intensity obstruction lights,roof/wall 90° angle
ALPOBMS-RW
Pack: 1 pcs
Info
Mounting set, low int. obstruction lights,pipe mount 33-80mm+ext.plate
Mounting set, low int. obstruction lights,pipe mount 33-80mm+ext.plate
ALPOBMS-EV60
Pack: 1 pcs
Info
Mounting set low int.obstr.light L-bracket 2xØ17mm cc240mm AISI316
Mounting set low int.obstr.light L-bracket 2xØ17mm cc240mm AISI316
ALPOBMS-WT5
Pack: 1 pcs
Info
Mounting set low int.obstr.light L-bracket 2xØ17mm cc240mm AISI304
Mounting set low int.obstr.light L-bracket 2xØ17mm cc240mm AISI304
ALPOBMS-WT5A
Pack: 1 pcs
Info

Low intensity obstruction lights with IR

We offer one of the most flexible low intensity LED obstruction lights with IR in compliance with ICAO, FAA and Swedish Transport Agency’s regulations TSFS 2020:88.

The obstruction lights have long life >175000 hours and extremely low power consumption, 2,3VA/2,1W. Solar powered lights are also available, contact us for more information.
