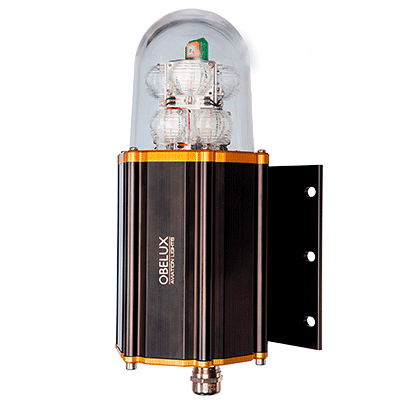

Medium int. obstruction light LED+IR 100-240VAC 2000/200cd B/C IP66

ALPOBMI-AC-2KR-IR-E1-XX

Medium intensity obstruction lights are used to warn air traffic for high structures like tall buildings, chimneys, masts, cranes etc. LED+IR as light source to ensure visibility for pilots using night vision device. Long life >175000 hours. Meets Swedish Transport Agency’s regulations TSFS 2020:88.

Pack size: 1/package
In stock (1 pcs)
Estimated delivery time, if not in stock: 35 days

E-number Sweden
7769110
Supply voltage
100-240VAC
Colour, light source
Red LED+IR, LED life expectancy >175000 hours
Light intensity LED
2000/200cd, ICAO type B/C
Light intensity IR
850 nm, >500 mW/sr >0° - <+2°
Light angle, red light
360° horizontal, >-10° vertical
Power consumption
2000cd flashing 7W, 2000cd steady burning 32,5W, heater 15W
Duty
Selectable, 24 hour or dusk-to-dawn
Burning
Steady burning or flashing, selectable 20/30/40/60 flashes/minute
Alarm contact
Included, change-over contact
GPS syncronisation/Modbus communication
Included
Terminals
Terminals, 0,5-4mm²
Ingress protection, IEC60529
IP66
Ambient temperature
-40 - +55°C
Weight, each
4,3 kg
Manufacturer's part number
MI-AC-2KR-IR-E1-XX

Mounting set for medium intensity obstr. lights, pipe mount 40-150mm
Mounting set for medium intensity obstr. lights, pipe mount 40-150mm
ALPOBMS-MI-V01
Pack: 1 pcs
Info
Mounting set medium int.obstr.light L-bracket 2xØ17mm cc240mm AISI304
Mounting set medium int.obstr.light L-bracket 2xØ17mm cc240mm AISI304
ALPOBMS-MI-H01
Pack: 1 pcs
Info
Mounting set medium int.obstr.light L-bracket 2xØ17mm cc240mm AISI316
Mounting set medium int.obstr.light L-bracket 2xØ17mm cc240mm AISI316
ALPOBMS-MI-H02
Pack: 1 pcs
Info
Mounting set medium int.obstr.light 4x33*18mm slotsØ274-339mm AISI316
Mounting set medium int.obstr.light 4x33*18mm slotsØ274-339mm AISI316
ALPOBMS-MI-H03
Pack: 1 pcs
Info
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 polycar
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 polycar
ALPOBCP-AC-M1-T-P
Pack: 1 pcs
Info
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 AISI316
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 AISI316
ALPOBCP-AC-M1-T-AS
Pack: 1 pcs
Info
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 AISI304
Control/fault mon.obstuction lights Modbus/GSM 100-240VAC IP65 AISI304
ALPOBCP-AC-M1-T-SS
Pack: 1 pcs
Info
Junction box 4 obstruction lights 100-240VAC Modbus IP65 Polycarbonate
Junction box 4 obstruction lights 100-240VAC Modbus IP65 Polycarbonate
ALPOBJB-ACW-MB-P
Pack: 1 pcs
Info
Battery backup for obstruction lights 230/230VAC 56Ah battery IP55
Battery backup for obstruction lights 230/230VAC 56Ah battery IP55
ALPOBUPS-230-56
Pack: 1 pcs
Info

Medium intensity obstruction lights with IR

Medium intensity obstruction lights in compliance with ICAO, FAA and Swedish Transport Agency’s regulations TSFS 2020:88.

Medium intensity obstruction lights type A and B/C, white flashing lights or red steady burning/flashing, 20 000 cd, versions with GPS synchronisation and Modbus communication.
