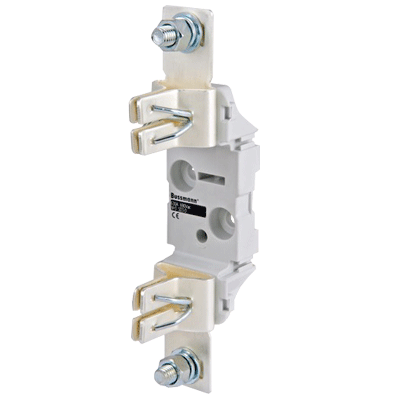

Fuse base 1p 690V 630A NH3 fuse IP00

CBSD3-D

Thermoplastic fuse base for NH solid blade fuses. Terminal covers and solid links are available as accessories. Vibration tested to IEC 60068-2-6 for marine use.

Pack size: 1/package
In stock (2 pcs)
Estimated delivery time, if not in stock: 21 days

Rated voltage
690V
Rated current
630A
No.of poles
1
Fuse size
3
Short circuit current
120kA
Max power loss/pole
60W
Terminal
M12 screw
Ingress protection, IEC60529
IP00, IP20 with accessories
Installation
35mm DIN rail mount/screw mount
Weight, each
0,54kg
Manufacturer's part number
SD3-D

Phase barriers+ganging links for NH3 fuseholders 2 pcs
Phase barriers+ganging links for NH3 fuseholders 2 pcs
CBSD3-PB
Pack: 1 pcs
Info
Shroud kit for NH3 fuseholders
Shroud kit for NH3 fuseholders
CBSD3-SK
Pack: 1 pcs
Info
Solid link NH3 690V 630A
Solid link NH3 690V 630A
CBSDL-3
Pack: 3 pcs
Info
